John Deere 6130R

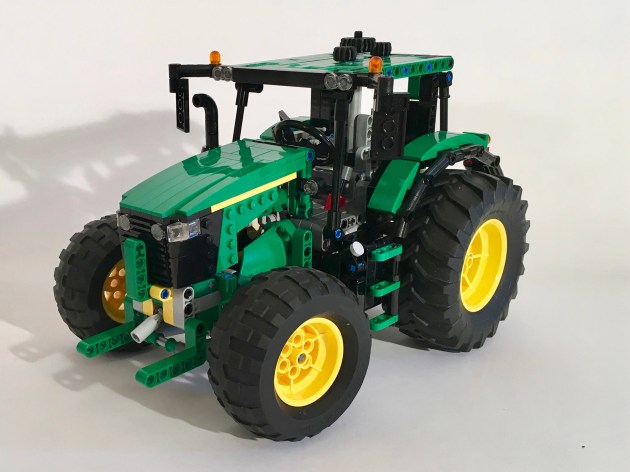

I am into a little bit of a tractor phase lately, so here is a model of the John Deere 6130R row tractor.


After the completion of my 9393 MOD, and the Claas Atos, I wanted to expand on what could be done in the tractor theme, and I wanted to use the newish large technic tires that first came from 42054. I set out to set the scale and list some of the features I wanted.  I decided on a John Deere tractor, because green looks sharp in LEGO, and the hubs I would need were available in yellow.

I first started with the driveline which is simply a differential between the rear tires, and a  couple of gears to the I4 engine (green of course). The steering was the second feature added, and runs from the HOG on the roof, goes through one bevel setup to the rack under the from engine.

fullsizeoutput_1649

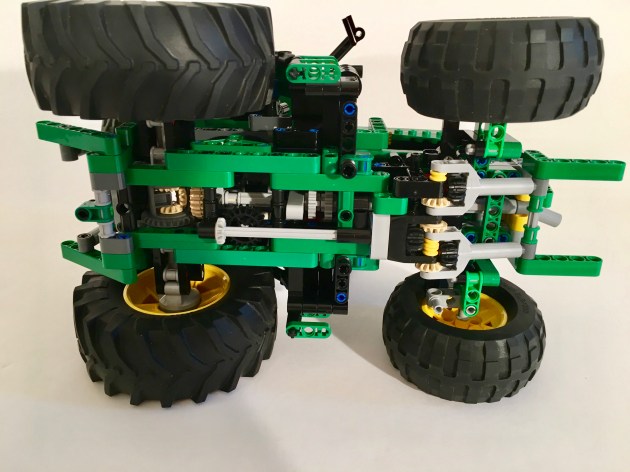

The tractor also has a front and rear PTO, with dual on/off switches, and front and rear drawbars. These features were a little tricky to add. The PTO on the rear is connected to the driveline on the right by a changeover catch, and routes rearward over the rear axle. The PTO on the from is connected to the driveline on the left, and routes under the steering axle to the front. Both drawbars can be raised and lowered by a HOG on the roof ahead and behind the steering HOG. Both use two mLAs to raise and lower the drawbar, and both can hold enough weight to tip over the tractor.

fullsizeoutput_164d

Working on the body work took some time. After trying a couple of technic options for the front hood, and rear fenders, I settled on an option that uses mostly system bricks. I was pleased how it turned out as it does not subtract from the look of the tractor too much. The hood can open to see the engine.

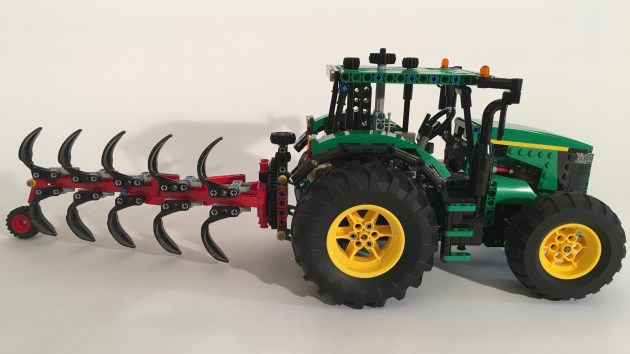

The tractor worked well, and all the features functioned as they should. I will continue to design implements, and test them out as long as the tractor stays built.

Happy building.
