I loved LEGO set 8081 because it gave me a lot of modification ideas, and LEGO 42126 is similar.
Instructions may be found at Rebrickable for the SVT10 and the SVT8.
LEGO 42126 SVT10 Front
In addition to the 4×4 version of 42126, I was immediately interested to making a sport version of the pickup. The sport pickup is one of those silly American contributions to the automotive landscape, so naturally I had to turn the most American of vehicles, the F-150, into a sport truck.
First, I had to figure out how to set the ride height. I decided on the wheels for the truck right away, so it was clear the truck had to come down a little bit. It was clear this would be a significant modification. Since I was already changing the whole frame for the ride height drop, I decided early that i would change the rear suspension to an independent design.
Second, I had to decide on what engine I would use. It was clear at this point, I would have a two door and four door version so I decided a V8 for one, and a V10 for the other. 42126 has a lot of space under the hood, so both would fit without a lot of changes. I added a chain driven supercharger for the V8 to give it a little different look.
LEGO 42126 SVT8 Open
Finally, I wanted to keep the bodywork similar to 42126, but with a sporty look. I designed a new front bumper that is lower, and looks less rugged. I removed the side steps from 42126, and replaced with some simple panels. A new hood was also designed.
Video for the SVT10.
Video for the SVT8.
Functionally, the truck worked better than the Raptor. The suspension worked very well, thought the rear ride height was a little high. The steering worked well, and the front wheels tracked better than on 42126. I liked the look a little better as well, as the wheels and tires make 42126 look out of scale with itself. I pleased with how the updates turned out, so we’ll see if I come up with another MOD to do at some point.
Sometimes I cannot make a decision. This is the LEGO result of that problem.
You may find free instructions for the AWD and the RWD (my favorite).
At the end of 2020, I decided to make a sport sedan. I find the sport sedan to be my favorite kind of car (see here and here), and it was time to do another one. I acquired a couple of the Defender wheels, which look more sporty than the other 56mm wheels. These would be the center of the build. The car would be long hood, short deck, with faired fenders. Then more questions happened, and I could not make up my mind.
What transmission did I want? What engine would be best? Could I fit all wheel drive? Was that appropriate? As I found myself asking these questions, I began answering “well why not that too?” It was here, the project took a dramatic turn. The car would be fully modular and interchangeable. After playing around with some dimensions and simple structures, I decided on the following setup: Two different transmission and rear suspension modules, one floorplan, one body (in two colors), two engine tubs for all wheel drive and rear wheel drive, and three engines. Demensions were set with a width of 27 studs at the rear tires, and 25 studs at the front tires, and a wheelbase of 33 studs.
Each of the 9 modules were build in constant flux with each other as I managed attachment points, size, and interchangeability. I settled on a 4 speed manual transmission module, and a 4 speed sequential transmission module. The manual is shifted in the cabin, and the sequential has a shift lever on the rear bumper. While four speeds is basic for a LEGO car these days, it kept space inside for four seats. Once the transmission modules were basically set, I was off to another module.
The engine tubs were a lot of fun and took less time than I thought they would. There are two tubs. The first, is built to support the front independent suspension and two different engine designs. The Straight Six is my favorite engine, so I wanted to make this options possible. The steering race for this module is placed far forward to allow for the I-6 to fit. In fact, the front of the engine is two studs from the front of the car. The V-8 fits well, and is placed behind the front axle centerline. The second engine tub features a fixed Flat 6 engine, and two fake electric motors; one for each side of the front axle. This unit is the hybrid and All Wheel Drive engine tub. Each tub attaches to either transmission module with six pins and one axle for steering. Drive connects by a 8 tooth gear off the engine.
Then I built the floorpan. This simple build provides the floor to both the cabin and the underside of the car. It is connected at six points, four to the chassis, and two to the center of the body. These points stiffen the car, and connect it all together. The body took the most time as this is what most people would see. Early, I committed to the sides panels including the doors and the part just behind the front wheels, and the roofline. Otherwise everything else was fair game. The front bumper took some time in order of the two studs of space, but I was pleased with the design. Next I managed to get the A, B, and C pillars to look the way I wanted. The C pillar took some trial and error but finally got a shape that was fast looking without the coupelike lines that seems to be permitting sedan design these days.
The rear took the longest. It was at this point where my focus on the MOC was starting to wain. Over months I tinkered with different trunks, different lights, and different rear bumpers. Eventually, I got to where I am now which could be improved, but I was pleased enough to call it complete. I added a little spoiler, and the body was done.
Ionos Sequential Rear
After everthing was built set, I rebuilt the whole car. As I did, I checked fit and built a Bricklink Studio file. With each step I found improvements along the way, and learned how to make better instructions. The result was a car system that fit together well, and gave for an interesting build. Again, if you are interested in the detail, or building your own you may find the instructions here and here.
This was my most favorite build in a long time. If you are interested, the Dark Azure, Manual, AWD version is my preference. The integration of all the parts was fun to do, and the build, test, rebuild process that went through every stage was a case study in continuous improvement. Both transmission work flawlessly. The suspension is stiff and functions as they should for a car of roughly 2500 parts. The varied engines were a fun inclusion. The design of the car is sporty and keeps the lines and proportions of a traditional Rear Wheel Drive Executive Sedan: long hood, short deck, short front overhang. I hope you enjoyed the car, and if you build it, I hope you enjoy the build. I definitely did, and will do something similar in the future.
LEGO 42126 was introduced in the Summer of 2021, and I was immediately drawn to the pickup as it included some features I like, such as steering, suspension, a decent (at least in the USA) price, and it’s Orange! But there were serious features lacking such as four wheel drive, a V-8 (I know, I know, a Raptor, and many of Ford’s F-150s use a turbo V-6), and the rear suspension geometry was weird. I agree with others, that some parts of the design like the rear taillights and the front headlights are a little off. But, like 8081, I saw some potential here, and I ordered the set.
In fact, before I even received my copy of 42126, I was designing and a building a new chassis. The V-8 was easy enough to add, as the space under the hood is extensive. Adding in a front drive axle was a little more complicated. To keep the width, steering geometry, and suspension travel the same as 42126, adding a front drive axle would take a little work. I used a floating differential design, which allows the differential to move freely as the suspension travels through its movement. The steering link was flipped upside down, and relocated in front of the drive axle. The suspension swingarm and shock absorber mounds did not change.
42126 V-8 4×4 Chassis
Immediately behind the engine firewall a differential that connects to the V-8, and the rear axle. The rear axle is changed to replicate a better movement of the rear Raptor. LEGO noted how the half module offset of 42126 was a feature they had to work on to get the placement of the axle correct. However, this feature was only needed as the pivot point of the rear axle was so to the rear of the pickup. By moving the pivot point of the rear axle farther forward, the travel pivots less, and creates a better axle movement of more up and down. This also helps place the axle better when one side is up, and the other down.
While I made no changes to the exterior, I made minor changes to the interor. The colors of the seats have been changed so they match one another a little better. Finally, with a little bit of cross frame bracing, the pickup was done. When 42126 finally arrived, I removed the bed, the doors, the hood, and the roof from 42126, and my F-150 was done.
I like making modifications of sets more than I like making B or C models of them. As such, this project was an enjoyable one for me. I worked fast, and I liked the improvements I was able to make to the original. I like the look of 42126, so keeping this consistent was fine for me, and the additions of the V-8 and the four wheel drive was a fun challenge to pursue. Now to see if I can do a Sport Truck version of 42126. Stay tuned….
The contest called for a small car using only two types of wheels, and not more than 15 studs wide. I like building small non-powered builds, so I decided to get to work. After working on a couple of drafts of car layouts, I decided on the LMP type C race car. It would be a little challenge, and allowed me to add some features that I wanted.
I new I would want an engine, steering, and removable bodywork panels just like a real LMP car. This morphed into a fully modular build. I started with the Monocoque which contains the steering, driver seat, roll structure, and rear engine and suspension mount.
Next I worked on the engine and rear axle. I used a mini V-8 design that is becoming common in LEGO designs, and made mine in such a way that it could be easily removed. The design incorporates an intake and turbo exhaust. The rear axle attached behind the engine. The entire assembly can be easily removed.
The bodywork took a little work, but only because I could not decide on the colors I wanted. Dark Azure was decided upon pretty quickly because it looked sharp, and had the small wheel panels. But the accent color was a little tricky. I liked yellow, white, black, but finally settled on lime. I hope you like the final look.
Everything worked well, and it looked the way I wanted it to. The result of the contest was about right in the middle on the 40ish contestants, so good, but not great.
A couple of years ago I did my first MOD of 8081, the 8081 4×4. It was the same bodywork of 8081, but I added 4 wheel drive, a front mounted V-8, and rear seats. It was a substantive change to the set. Likewise this MOD is so different from the first set, I am not sure if this is a MOD, or a MOC. I keep the design features of 8081, but not much from the original set still remains.
I took from front end of the 8081 4×4 which mounted the V-8, and the front bumper. Then I lengthened the chassis to accommodate a 4 stud longer wheelbase. The rear axle is the same, but the front axle needed to be modified to handle the increased weight of the truck. The center differential powers the V-8.
Both axles are live axles that are suspended with a hard spring at each corner. Each axle has two stabilizing links on the bottom, and a Panhard rod for each. Steering is on the front axle. Combined with the Fischertechnik tires, the truck has significant suspension articulation.
I added the bodywork last, but this did not take long as much of the design work followed themes determined by set 8081, though the pickup body style was planned from the beginning. The truck looked too big and black when I was done, so I added the roof rack/roll cage, the running boards, and a bull bar (though its little clunky).
The truck works well, and looks pretty tough. The suspension works much better than the first 8081 4×4. The new wheel hubs help the front a lot. Also the front suspension is better supported laterally than the first iteration. The Fischertechnik tires work great on this model, and while not LEGO parts, they are quickly becoming a favorite addition to my builds.
Throughout the whole project I kept asking myself, when is a build a MOD, and when is it a MOC. This project felt a lot like the later, but still connects to 8081.
I do not buy many sets these days, mostly due to the fact that the space required for a gazillion new parts every year is not priority I am willing to resource. But some sets are a fun opportunities to MOD.
The little car from 42098 caught my eye. While the truck was neat, it was not what I was interest in, so after a query of my own part collection, and a quick order from LEGO, I got the parts I needed. Upon completion, there were a couple parts of the car that bothered me, and a couple of parts I thought I could improve. So I started taking apart the car to see what I could do.

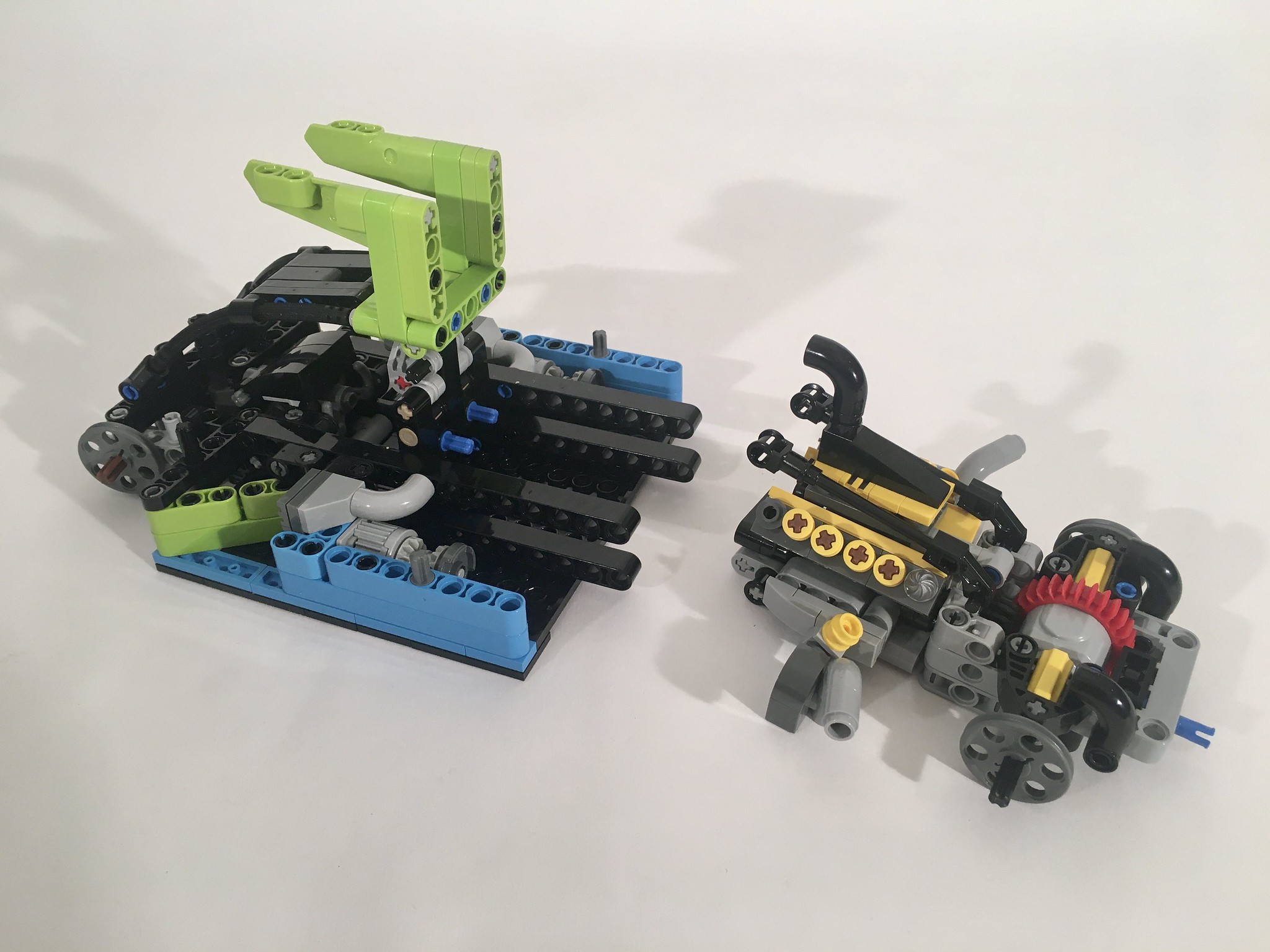

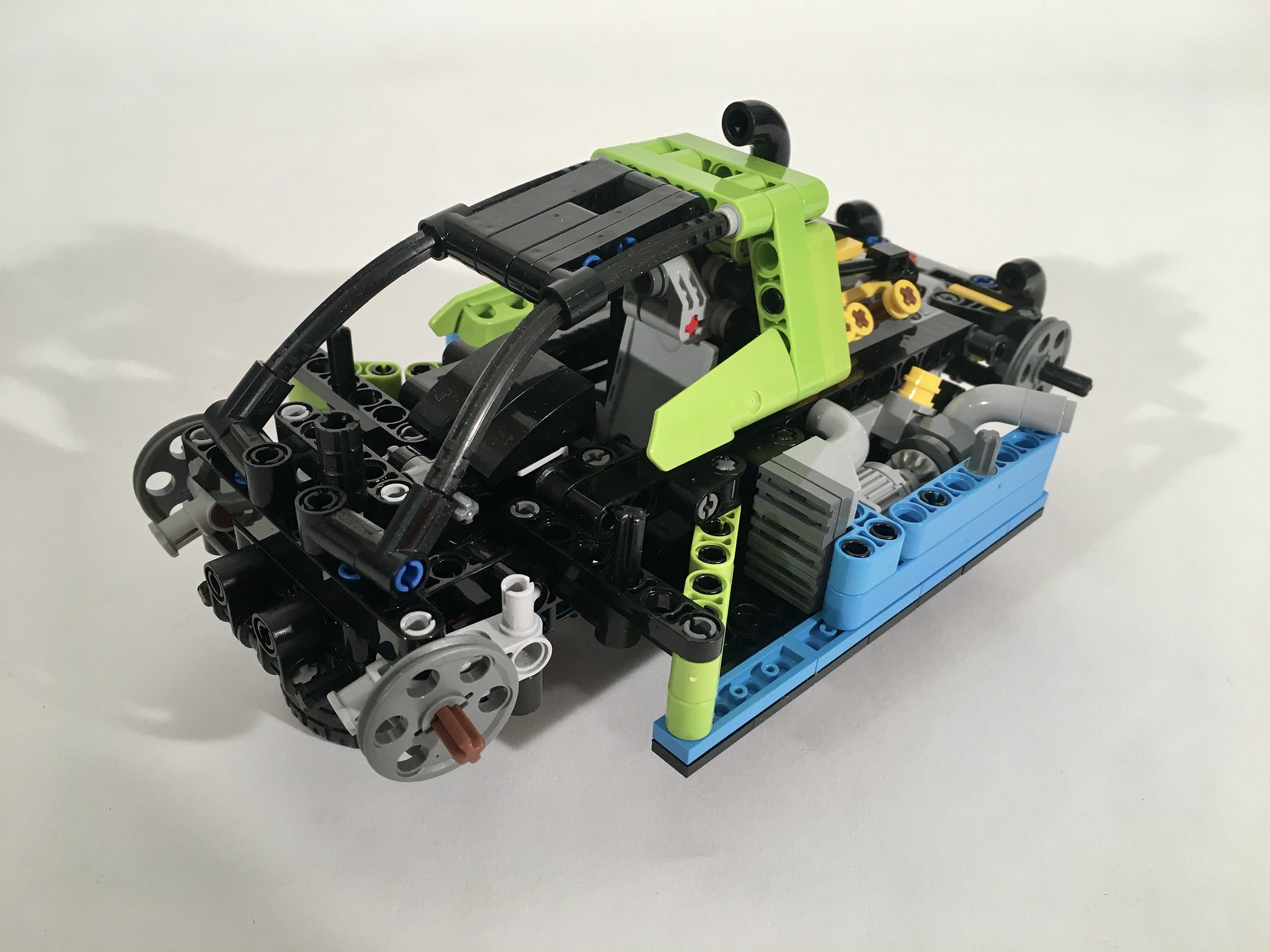

First, I made a mock-up of the side of the car to see if opening doors could work without lengthening the car. Turns out by moving the curved panel forward one stud, it works easily.
Next, I was off to the rear axle. It was easy enough to design a simple live axle and connect it to the V-8. What become tricky was mounting the shocks. 42098 has low rear deck, and I do not like how the rear wheels are pushed down away from the wheel wells; it make the car look tilted forward. So finding an appropriate ride height to lower the rear while mounting the shocks in the limited space available took the rest of the time. Once this was in, I added the bodywork back on with a couple of changes to the 1950s rear and the side sills and the car was done.
The car worked well enough, though any live axle setup is a little silly when there is not suspension on the front. The engine still worked smoothly. The steering HOG on the back is still not optimal, but adding one on the roof would take away from the fantastic roof-line. Another round of edits may be needed to add back in the nominal opening hood. It is a pretty basic feature in the original car, but since opening doors were added in this MOD, the opening hood is missed. We’ll see what I end up MODing next time.
A while ago I decided I was going to do a proper new school supercar. Something with all the features that are to be expected in the LEGO Technic Community. You know what they are; suspension, a gearbox, opening doors, a working engine, steering, and something fast looking. Probably red. It was time to test my chops and throw my hat into the ring.
The full gallery can be viewed here, and instructions may be purchased for $9 USD. Partlist
It has been a long time since I have built a supercar. While I enjoy many of the cars others make, I long for exceptional creativity in suspension design, gearboxes, and body style. It was time for me to build another one and contribute to these areas. About two years ago I set out to create a six speed gearbox that would have a more realistic gear change movement. I tried linkages, springs, and so many gears. In a bit of a breakthrough, I offset the two outside changeovers vertically by 1/2 stud. This allowed for the changeover lever to connect all three changeovers as it rotated from a single center pivot point. Once this design was completed, it needed a home.

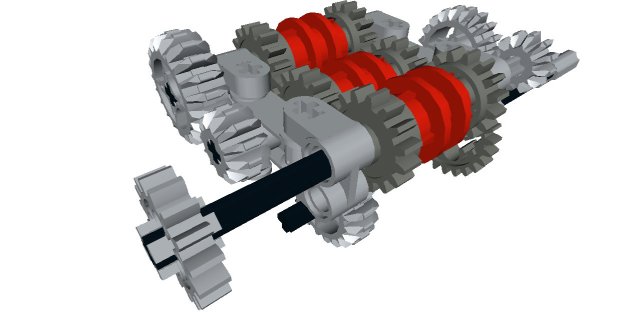

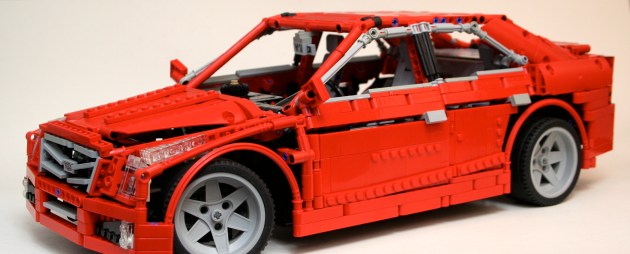

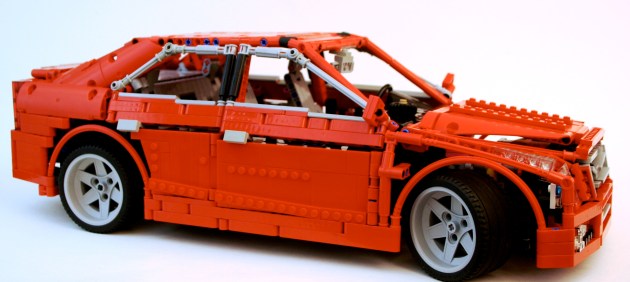

I have a preference for sedans rather than coupes. Plus too many two-door supercars have been created. Forgive the slight nationalism, but I thought it would be fun to do an American sports sedan, so a Cadillac was the best choice since the demise of my beloved Lincoln LS. The ATS was new, and at the scale would be a little more manageable than the CTS. I worked a little on the scale of the car. Some parts would be a challenge to convey the look, but I was ready to start building.

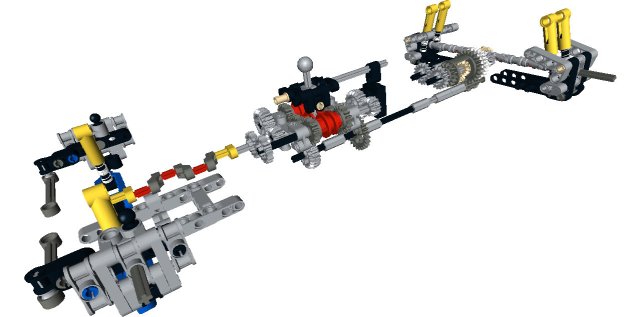

I started with the front suspension. The new suspension arms allowed for a short/long arm setup. The two different arm designs allowed for a increasing negative camber as the suspension moved through its travel. Additionally, the pivot points on the steering hub allowed for a kingpin inclination to provide an improved caster angle. Finally, I added Ackerman geometry to the steering link. After some work mounting the suspension, and the rack and pinon steering, I had the front suspension done.
The rear suspension was more simple, but still had some unique features. While the real ATS uses a 5 link setup in the rear, I was not too impressed with the results I came up with as too much flex was found at the wheel. I started with a transversely mounted limited slip differential that I have used before. This connected directly to the two half-shafts for the rear wheels. I applied a short/long arm setup for the rear suspension so the tires would keep their contact patch as the body would roll through a corner. Like the front, this created increasing negative camber as the suspension moved through its travel. Normal in real cars, not often replicated in LEGO.
Tying all of these parts together was a little bit of a challenge. I wanted the steering wheel to be connected to the steering as well as a HOG knob on the dashboard. In addition, the doors, trunk, and hood should all open. Naturally, the car had to have a spare tire, and various engine options which could be easily removed. The chassis had to be stiff enough for the suspension to function well. Packing this all together took some time. About 9 months, but who is counting?

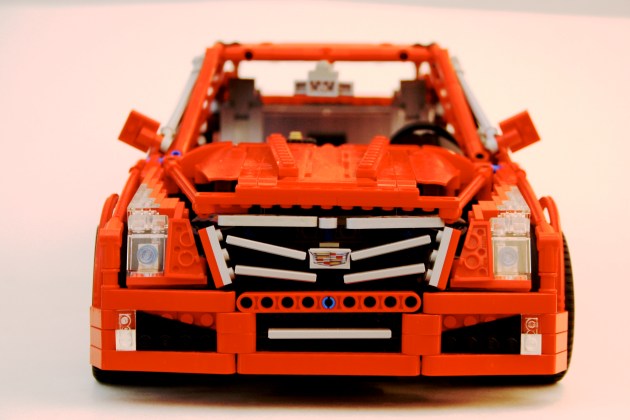

But what took the most time was the body work. This is the part for which I have little motivation, and the important part that would identify the car as an ATS. I had a lot of work to do. And my palmares have not trained me well for this task. After major parts were placed, and the dimension were set (37 stud Wheelbase, 60 stud Length, 25 stud Width), I worked on one section at a time. As the front bumper was part of the chassis, this part was developed early. As did the rear bumper. The headlights are unique for the ATS, so this was done early as well. After the roof was placed I worked on the trunk, which came together rather easily. I worked on the hood of the car, and after two designs I was happy with the result. I then worked on the grill, and after tinkering with a couple of SNOT techniques, I was able to get most of the distinctive Cadillac grill in my design.
Then off to the doors. I made seven designs. Most sedans these days have various creases that identify their sedan as different than any other sedan. You will notice the ATS has two, one on the bottom that rises slowly to the rear, and one midway up to the windows that moves along the length of the car from the hood to the trunk. The top line was accomplished by having the angle for the windows start a little lower on the front door and higher by a 1/2 stud on the rear door. The bottom crease was added by attaching some angled plates to the bottom of both doors, which cant slightly inward. Finally, both doors have an upper pivot point that is 1/2 stud inboard to bring the upper part of the doors toward the center of the car. Once I got a design I liked, I had to bring it all together to make sure everything fit well. I adjusted the roof, modified the hood, tightened up the dashboard connection to the doors, and made some changes to the rear quarter panels. There were still some areas where improvement could be made, but I was running out of ideas. I was pleased with the result. Pleased enough to say I was done.
All in all, I was pleased with the result of the car. As this is my first studless supercar, I was happy with how it turned out. The functions were up to my standards, and nothing was compromised as the car came together. While I was overwhelmed with the bodywork, I was pleased with how it turned out. Because it took me a long time to get it to work, it may be a long time before I do another one. I was happy I did a sedan, and hopefully a new moniker can begin in the LEGO community. #supersedan.
I have said it before; I really like set 8081. It has so many possibilities for improvement. After talking a look at RM8‘s design, I thought I should do a street version of the 8081 to follow up on the 4×4 8081 I built a while back.
The full gallery can be found here, and free instructions can be found here.
I took the existing bodywork and frame of the 8081, and chopped out the rear suspension unit to revise the rear suspension design. I wanted an independent setup with a differential. As I have used a couple of times before, I used a floating differential design. The differential is attached to the driveline much like a live-axle set up, but is connected to two independently mounted wheel hubs. I have used this before, and I like the way it works. It allows for a driven axle with independent suspension in a very narrow setup. This way each wheel can move independently, but it does not require two universal joints on each side of the differential. Since the differential is not fixed to the chassis, it has to be braced to the driveshaft. While this set-up is not often used in real cars, it works well for LEGO designs. I used the new wheel hubs, and attached them via a short upper arm, and a long lower arm so the camber would change through the suspension travel.
Moving to the front, I kept the V-8 as in my 4×4 8081, and built the rest of the front around the motor. I used a suspension design similar to 8081, where there are two equal length arms holding the steering pivot. A single shock absorber is used for each side. All told, the car is about two studs lower, due to the new suspension, and the new tires.
It is not much of a redesign, but sometimes I need a project that is not a significant, and allows me to just build something simple.
For most LEGO enthusists, when they purchased the set 8081, they quickly modified the set with a Power Functions drivetrain. It makes sense. LEGO models are a little more exciting when they are motorized. But I guess I went a little backwards. I wanted to do the fun stuff first, and make the most complicated and compact drivetrain I could make. I posted the instructions here, and they can also be viewed on Rebrickable.com.
But the comments kept coming from people who wanted to see my model motorized. So I thought it might be a fun addition. I added a two PF M motors, a 8878 Battary Box, and an IR receiver. I tried to keep the modifications simple, so I could easily add the motors to the MOD, and take the system out if I wanted to. The drive motor was placed on a simple mount that connected to the frame. The power was fed thought a 8z gear to a 24z gear which then connected directly to the V8 driveshaft. The driveline was unchanged from the V8 down. The steering motor was mounted laterally in front of the rear seats. A 20z double bevel gear drove a 16z gear, then a worm gear moved the final 8z gear which was mounted on the existing HOG steering axle. I removed the passanger seat which is where I placed the battary box, and created a simple mount for the IR receiver. The added weight required a new shock absorber, so I added that as well.
The model worked alright. The drivetrain did well to handle the new power, and I could easily control the Crusier. The steering motor was a little too powerful for the upside down facing steering rack. It skipped a little under load, which was a problem over rougher terrain. The drive motor was a little taxed, so a PF XL would have done a little better. I guess I could add that, but I am ready to move on to my next model. Stay tuned.
When I got out of college, I started getting back into LEGO; the end of my “dark ages.” I wanted to make a large supercar, just like everyone else. But after my first attempt, there were a couple of things I wanted to improve, and the first car did not really look right. OK, so what needed to change? I needed to stretch the car, and make the stance a little better, add some features, and make it as real as possible.
I used the dementions of the 2005 BMW 5 series as my template. From these demensions I used the F1 Racer wheels and tires to set the scale, then I determined the wheelbase, got the width, and I went to work. I first made the rear suspension unit, and then the dual cam V-8. Then I linked the two with a 4 speed transmission, and a long driveshaft and added a simple parking brake. It took a little work, but I then added the front suspensions. I have found it best to use technic beams to mount the front suspension. The A-arms are then attached to this structure, with the shock absorbers placed on this structure and braced with liftarms. I then connected this directly to the front of the V-8, and connected it to the rest of the chassis with a simple frame. I used the old steering mounts of the old 8865 supercar, and connected them to the steering wheel through an upside down mounted steering rack. Of note, the car was going to be big and heavy. I had to find a way to get two hard shock absorbers at each wheel which limited the suspensions options I had. In addition, I added a front and rear sway bar, which took a little more space, but it worked.
Then the body. I worked first on the doors, and the front bumper. I used a dual pivot design for the doors so they would open even though bricks do not work well with pivots. Then I did the front and rear quarterpanels, and set the rear bumper in such a way that a full size spare tire would fit. I then worked on the interior. I designed a simple tilt steering using a worm gear, and a universal joint. I made sure to use the great front seat design by Pixsrv, added a rear bench seat, funished the trunk and added all the little compartments in the center console and glovebox.
I finished with rest of the body work. The roof had a sun roof, and the trunk would have a damped shock to hold open the trunklid, and added small details and some mirrors. It was big, and it was done. I was pleased with my first large car. It still my most popular on Brickshelf.com.
All in all it was a great experience to learn about how to make a large car, and all the challenges that go with that. Frankly, since this design, most of my cars have been a little smaller, as it makes the suspension and steering work a little bigger. Lessons learned.
