2C Sports Car

3T Sports Sedan was the inaugural car for startup Thirdwigg Motors, and the market requested another, smaller, sportier offering. The board of directors approved development of the 2C to fill this need.

Full gallery including instructions may be found here.

I wanted to keep the scale and keep many of the best parts of the 3T in this design but change the body style and add a couple of features. Very early I decided on a two door with a mid or rear engine. I wanted to get a better transmission, so with this, I set of to work. I scaled the car to the Porsche Cayman, and started fitting in parts. I used the same suspension from the 3T in both the front and rear, which constrained how the driveline would have to be routed.

It was at this point that the interior setup got a little complicated. When I started this car, the new Wave Selector was just release which optioned a lot of gearbox options. After seeing this great little transmission, I knew I had what I wanted: a four speed sequential transmission. After playing with some options, I place it in the middle of the car. I toyed with having the engine behind the rear axle, but settled on a mid placement. Nothing larger than a Flat 4 was ever considered. The four speed gearbox worked and a changeover axle ran to the front under the suspension where a simple rotation limiter was placed. The steering HOG and steering wheel had all of their mechanics in front of the transmission, so everything fit.

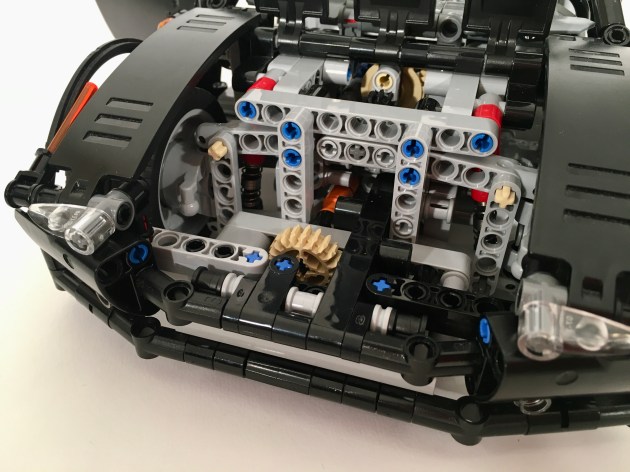

I had intentions of having a ratcheting gear selector to work with the slick sequential  transmission. But I was running out of space. The center of the car was taken up with the transmission, suspension at each end, and placing one in the rear did not give a way to connect to the transmission. So the only place left was under the front hood. There were a number of great change over options that work well. I tried each. Some fit, some worked great, but each had the same problem: there was not good way to seamlessly integrate the “button” into the bodywork. I had visions of pushing on a grill to actuate the mechanism, but the grill was not very big, and required even more space than I was already using. In the end I decided to scrap the idea of a changeover, and use a simple rotary selector. It is not fancy, but it works well, and keeps the bodywork clean.

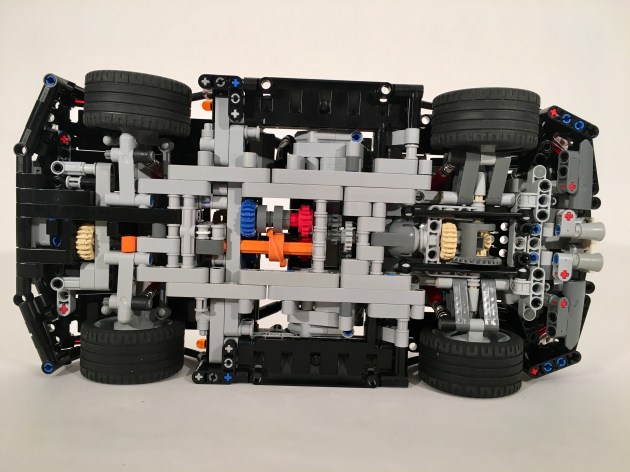

Through out this process I was toying with ideas for the body work. Generally, I add parts as I like them, and when everything is placed, I rebuild the whole car with structures in place for all the final placements of critical internal and external parts. But this car had a large transmission in the middle which meant there was no frame running from the front to the rear. I added a structural frame under each door, and tried to build up the frame under the transmission as best as I could. It works, but there is still a little car flex under heavy center load.

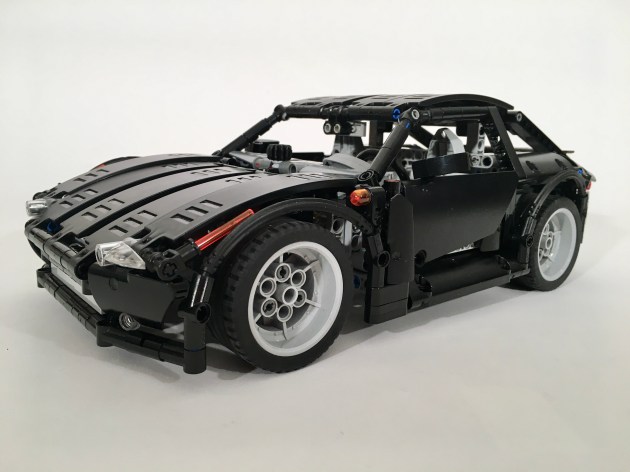

First, the bodywork on this car works better for my eyes than the 3T, even though I tend to like sedans a little better. Second, the gearbox worked flawlessly. It was smooth, and even though I had the open the hood the change gears, the smoothness was worth it. Finally, the suspension worked great as it had proved itself in the 3T. It now adorns the desk at my work. Hopefully you enjoy it too.

Don’t worry, Thirdwigg Motors is already hard at work on the next car.

Happy Building.
