I have made it clear on a number of occations that I love LEGO set 8081. To celebrate this little unloved set, I created another MOD of this set.

Full gallery may be found here.

fullsizeoutput_1986

A couple of years ago I did my first MOD of 8081, the 8081 4×4. It was the same bodywork of 8081, but I added 4 wheel drive, a front mounted V-8, and rear seats. It was a substantive change to the set. Likewise this MOD is so different from the first set, I am not sure if this is a MOD, or a MOC. I keep the design features of 8081, but not much from the original set still remains.

I took from front end of the 8081 4×4 which mounted the V-8, and the front bumper. Then I lengthened the chassis to accommodate a 4 stud longer wheelbase. The rear axle is the same, but the front axle needed to be modified to handle the increased weight of the truck. The center differential powers the V-8.

fullsizeoutput_196e

Both axles are live axles that are suspended with a hard spring at each corner. Each axle has two stabilizing links on the bottom, and a Panhard rod for each. Steering is on the front axle. Combined with the Fischertechnik tires, the truck has significant suspension articulation.

fullsizeoutput_1974

I added the bodywork last, but this did not take long as much of the design work followed themes determined by set 8081, though the pickup body style was planned from the beginning. The truck looked too big and black when I was done, so I added the roof rack/roll cage, the running boards, and a bull bar (though its little clunky).

The truck works well, and looks pretty tough. The suspension works much better than the first 8081 4×4. The new wheel hubs help the front a lot. Also the front suspension is better supported laterally than the first iteration. The Fischertechnik tires work great on this model, and while not LEGO parts, they are quickly becoming a favorite addition to my builds.

Throughout the whole project I kept asking myself, when is a build a MOD, and when is it a MOC. This project felt a lot like the later, but still connects to 8081.

Happy Building.

Advertisement

Filed under Cars, MODs Tagged with , , , , , , , ,

Porsche 911RS

December 7, 2019 1 Comment


There is a part of me that finds LEGO 42098 a little gimmicky: buy this truck that fits 5 cars but comes with 1 so you you build or buy more to fill the truck. But, these wheel arches are so awesome that I am going to do just that.

Full gallery including instructions may found here.

fullsizeoutput_1734

After a rough first draft it was clear I was going to be able to steering and a Flat 6 into the car at a scale that would work for 42098, so most of the early work was on figuring out the shape of the car. I knew the car was going to be orange, and I wanted the little ducktail spoiler, so I modeled the car after the 964 version of the Porsche 911. The rear differential is placed two studs in front of the rear axle to allow for more room for the rear engine. I kept the normal LEGO engine parts rather than an axle engine like in 42098. The steering is simple in all in front of the driveline.

911RSDrive

The body work continued to take the most time. I used a great 911 MOC from Paave for many ideas including the seats and the front hood. Eventually, it all came together, after a lot of work on the doors, the roof, and the rear deck. The 911 is a beautiful car and getting all the details is so tricky. I almost feel bad for how critical I was of LEGO 42056. Almost…

fullsizeoutput_1733

One thing you will notice is my use of both the 43mm and the 49mm tires for the rear of the car. I go back and forth on which ones I like best. Also, there was no way is was going to use the skinny 43mm tires for the front. They look silly.

This little car worked great, and functioned as intended. The shaping was off a little particularly with the rear quarter panels, the roofline, and the front headlights. But the shape of the 911 is so iconic that get all the details that have been refine over 50ish years is tricky. Either way if fits on the back of 42098.

Happy building.

Filed under Cars Tagged with , , , , , , , ,

Iveco Skip Loader

November 27, 2019 2 Comments


I have done a lot of small scale trucks, and it was time for me to do something bigger. 2 studs bigger to be precise.

Full gallery is here.

01

This project stared as a desire to make another small truck. I have used the 43.2mm tire in my trucks a lot, and I have used the 49.5mm tire only once. I was ready for the newer size again, so I found a nice little truck to model, and I was off. I very much like the shape of the 49.5mm tire, but it presents some challenges to scale. I works much better as a 15 stud wide size, and trucks often have a dual tires on the drive axle. This leaves only 5 studs of width to work with for the chassis and driveline. While a differential will fit within this space, keeping the axle connected to the differential does not happen when driving the finished truck. So I have a 8l axle with stop connected to a bevel gear on one side, and a 5l axle with stop. The gear then runs to the front of the truck where it connects to a V-4 engine.


Adding the skip functions were the next challenge. Adding the rear outriggers was not very difficult, but then it was complicated by adding the skip hook. Both are moved by mLA that are mounted far forward in the truck and connected by long liftarms to the back. It took a while to get the geometry of all of this to work together in conjunction with the lifting arms, but in the end it all worked well. The lifting actuators are moved by a gear on the side, and the other two functions are moved by two gears on the top of the cab protector.

11

Working on the cab came next, and I used a mix of system and technic bricks. I made sure the cab could tilt, and there is a locking mechanism. The steering HOG is on the top of the cabin, and connects when the cab is down.

Finally, I added a little trailer. I added a simple function to lock the skip in place. The trailer can be towed by the truck, and when it is time to add a skip the hitch goes under the truck so it can get close enough to drop the skip.

The truck ended up doing everything I wanted. The tip and lift functions work well, and the trailer was a fun little addition. The colors work well for this truck, and the cab turned out as well. Maybe I will need to do another MOC in this scale.

Happy Building.



Filed under Construction Tagged with , , , , , , , , ,

LEGO 42098 Car MOD

November 22, 2019 1 Comment


I do not buy many sets these days, mostly due to the fact that the space required for a gazillion new parts every year is not priority I am willing to resource. But some sets are a fun opportunities to MOD.

07

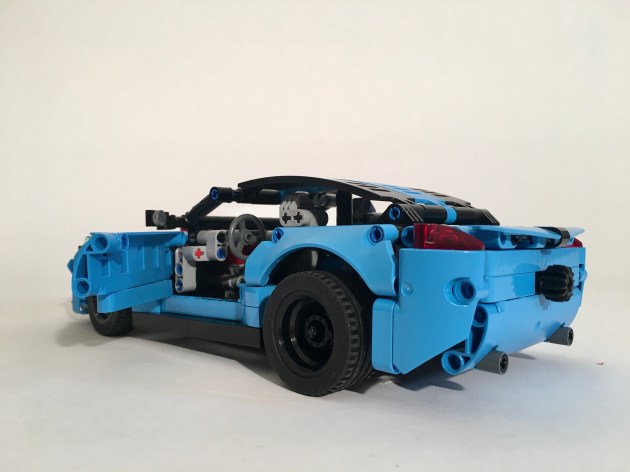

The little car from 42098 caught my eye. While the truck was neat, it was not what I was interest in, so after a query of my own part collection, and a quick order from LEGO, I got the parts I needed. Upon completion, there were a couple parts of the car that bothered me, and a couple of parts I thought I could improve. So I started taking apart the car to see what I could do.

First, I made a mock-up of the side of the car to see if opening doors could work without lengthening the car. Turns out by moving the curved panel forward one stud, it works easily.

08

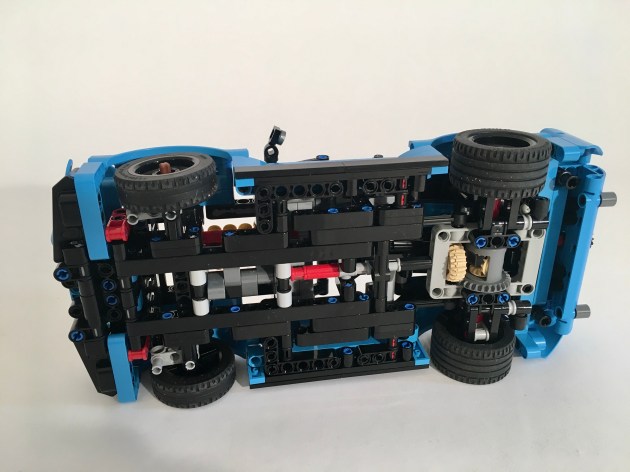

Next, I was off to the rear axle. It was easy enough to design a simple live axle and connect it to the V-8. What become tricky was mounting the shocks. 42098 has low rear deck, and I do not like how the rear wheels are pushed down away from the wheel wells; it make the car look tilted forward. So finding an appropriate ride height to lower the rear while mounting the shocks in the limited space available took the rest of the time. Once this was in, I added the bodywork back on with a couple of changes to the 1950s rear and the side sills and the car was done.
