Porsche 718 Boxster

March 27, 2024 Leave a comment


There are many great Porsche 911s, so it was time to try a Boxster.

Instructions are available at Rebrickable.com.

Like many car enthusiasts, I am love any Porsche. I have made my fair share of 911s, which is right of passage for LEGO car designers. But at some point, I looked around and did not find any Boxsters. So it was time to design one.

I had been playing around with some boxer engines for years, and I was finally able to come up with a design that I liked for this scale. The little axle based engine that has worked well for many smaller Technic builds is a great, and versatile design. It’s a little tall for small scale builds, but generally works well and is great to watch in these smaller cars. But it works because of gravity, so a flat engine design does not work. I tried ways to connect the axle pistons, but then the engine got so wide it would not work in this size car. Finally, after a number of drafts, and way too many months, a little design started to take shape. Built around a cam based crankshaft, pistons are mounted on a Technic connector and swing in and out to represent the engine. It is not a true flat engine, but it works smoothly, looks the part, and fits these small cars well.

Once the engine was done, building the car around it was rather fun. I worked on the doors and side of the car next, and it was at this point, I decided on the Lime color. Adding the fenders and rear deck came next, then I had to pause to build the roof. It took some time, and a number of drafts, but I finally came up with a simple roof design that would fold into the rear of the car. The roof was not too stable when up, so I use a HOG extension in the middle of the roof to give it a little support.

The car turned out to be a great little testbed for another engine design. I am pleased with how it works, and will be an idea I use in another build. The front bumper could be a little more rounded, but maybe I will update that on a future Cayman or something.

Happy building.

Filed under Cars Tagged with , , , , ,

AWD E-Hatch

March 24, 2024 Leave a comment


Another small car, but this time an EV with AWD!

Free Instructions may be found at Rebrickable.com.

I have been enjoying the small LEGO car theme that has been growing ever since the release of LEGO set 42098. Not only was it a well designed set, it opened up the 15 stud wide car theme which has been going strong ever since. I have enjoyed many builds by a lot of other designers, and I have had a lot of fun with many of my own builds.

I was tinkering with some ideas recently on a fake electric drive for this scale, and through this tinkering I found another idea that would work well for a front steering axle. Applying a fake motor to the rear axle was simple enough as the differential could drive an electric motor directly. But for the front, I removed the differential, but still used the gear to drive a fake motor. Using a CV joint on each side on which to mount the wheel would allow for the steering to work. The steering knuckle pivots are out of line of the CV joint pivot, but since the CV joint allows for frictionless movement of an axle, it allowed for a the center axle to flex a little bit during the steering movement. The center axle is mounted on a pivot that manages the movement.

The system works well, and means the front fake electric motors is always turning when the car is moving. The steering gets a little gummy at full lock as the front axle would be better with a differential, but the idea works well enough.

Adding in a HOG was simple enough, and I had enough space to add a connection to the front steering wheel. I wanted to try a different interior setup with seating for three, so this worked well with the center steering. Also, I complicated things just a little bit on the front axle, by having the axle a half stud lower than the rear to give the car a leaning forward look.

Finally, I worked on the bodywork to give an updated look to the classic rally hatchback from yesteryear. The comically large wing, and the large side intakes harken to the Renault Turbo 5 and the more recent R5 Turbo 3E.

I have enjoyed building in this scale, and it will not be the last time I do so. It was fun to try another feature for this scale, and I think with a little more work, the front axle will be perfect. I love the design on the car as the black, red, and dark azure look great with the proportions and bodywork. I hope you enjoy too.

Happy building!

Filed under Cars Tagged with , , , ,

Snow Patrol

March 10, 2024 Leave a comment


Another build for a Eurobricks Technic Contest.

Free Instructions may be found at Rebrickable.com.

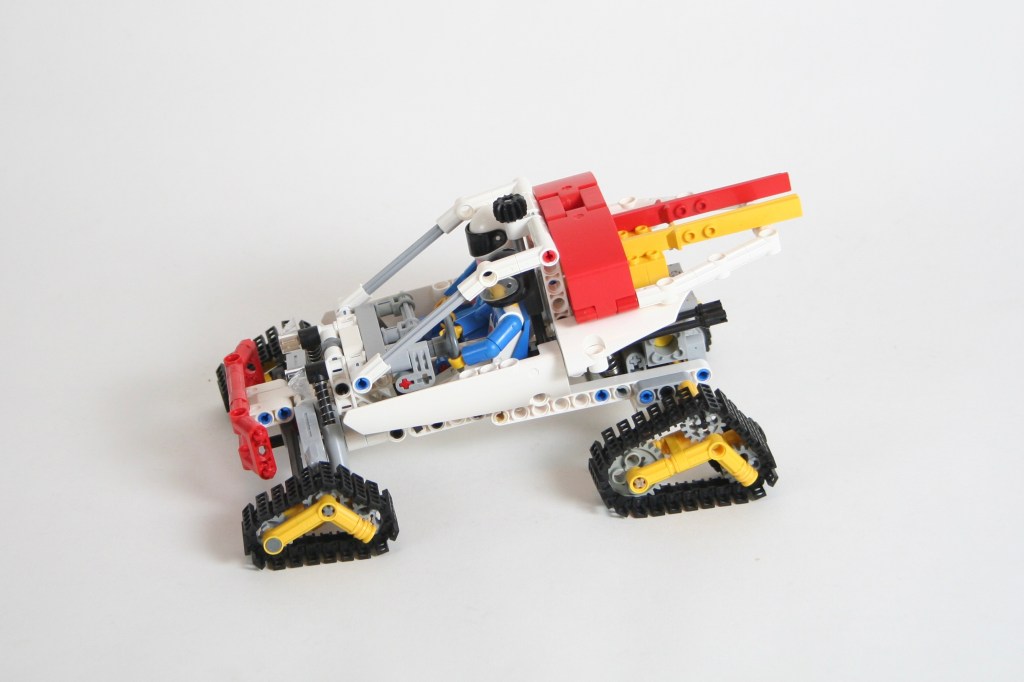

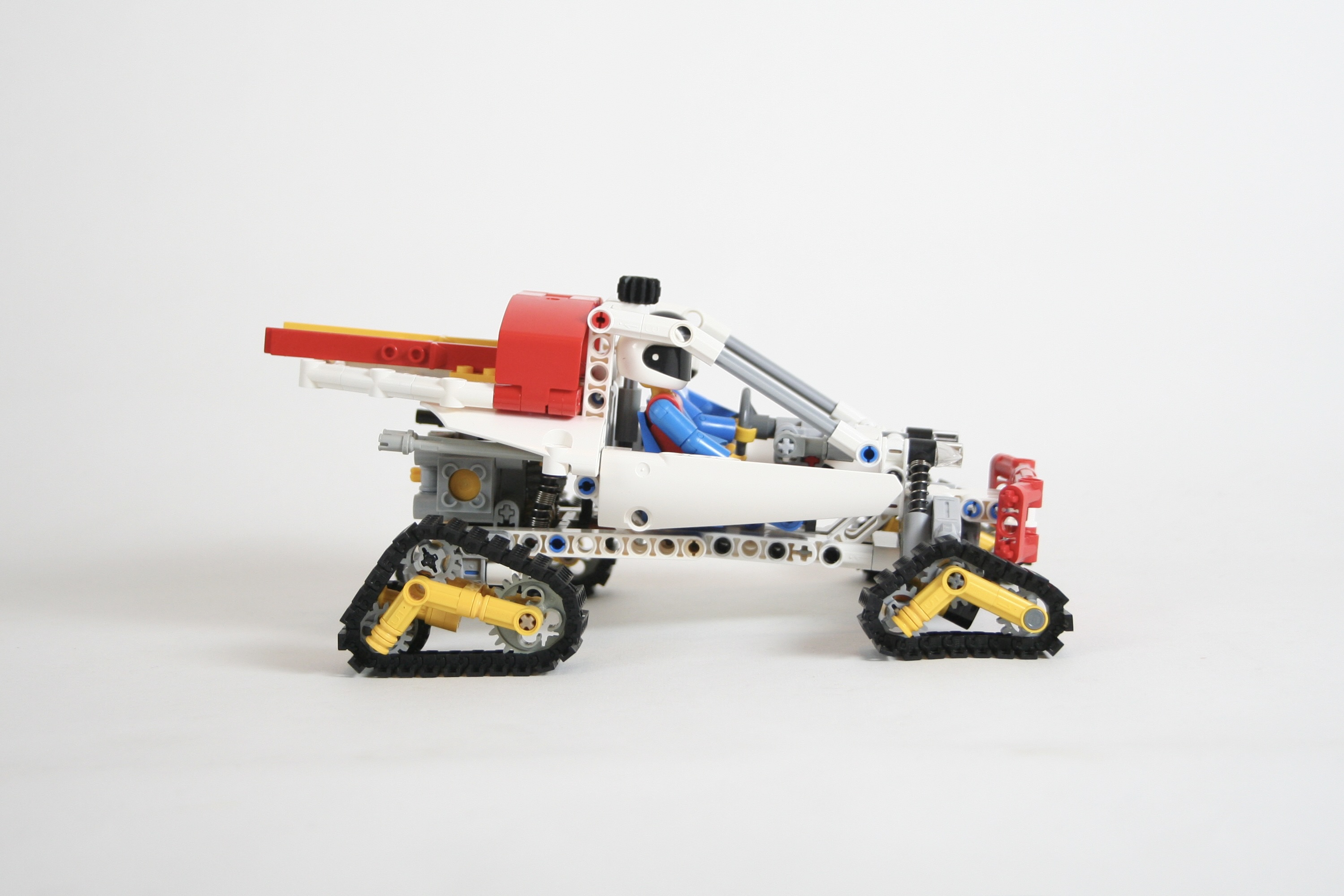

About twice a year, Eurobricks hosts a Technic build challenge, and I try to participate in as many as I am able. It keeps me building, and challenges me to build something I usually do not. And a friendly competition is always a good idea. This winter, TC26 was launched, and asked participates to build an arctic vehicle. I wanted to participate, but I did not have too much extra capacity during this season, so I decided to build something a little smaller.

The theme called for either an orange build, or a build that matches the colors of the original arctic theme technic had during the late 80’s. I, of course, decided to use the 80’s theme because this would allow me to use my seldom used Technic figures, and their skis. Also, the build would have to use tracks, and I felt this was a requirement for a snow vehicle. I was inspired by some side-by-side vehicles recently, so that was the idea I would move forward with for the build.

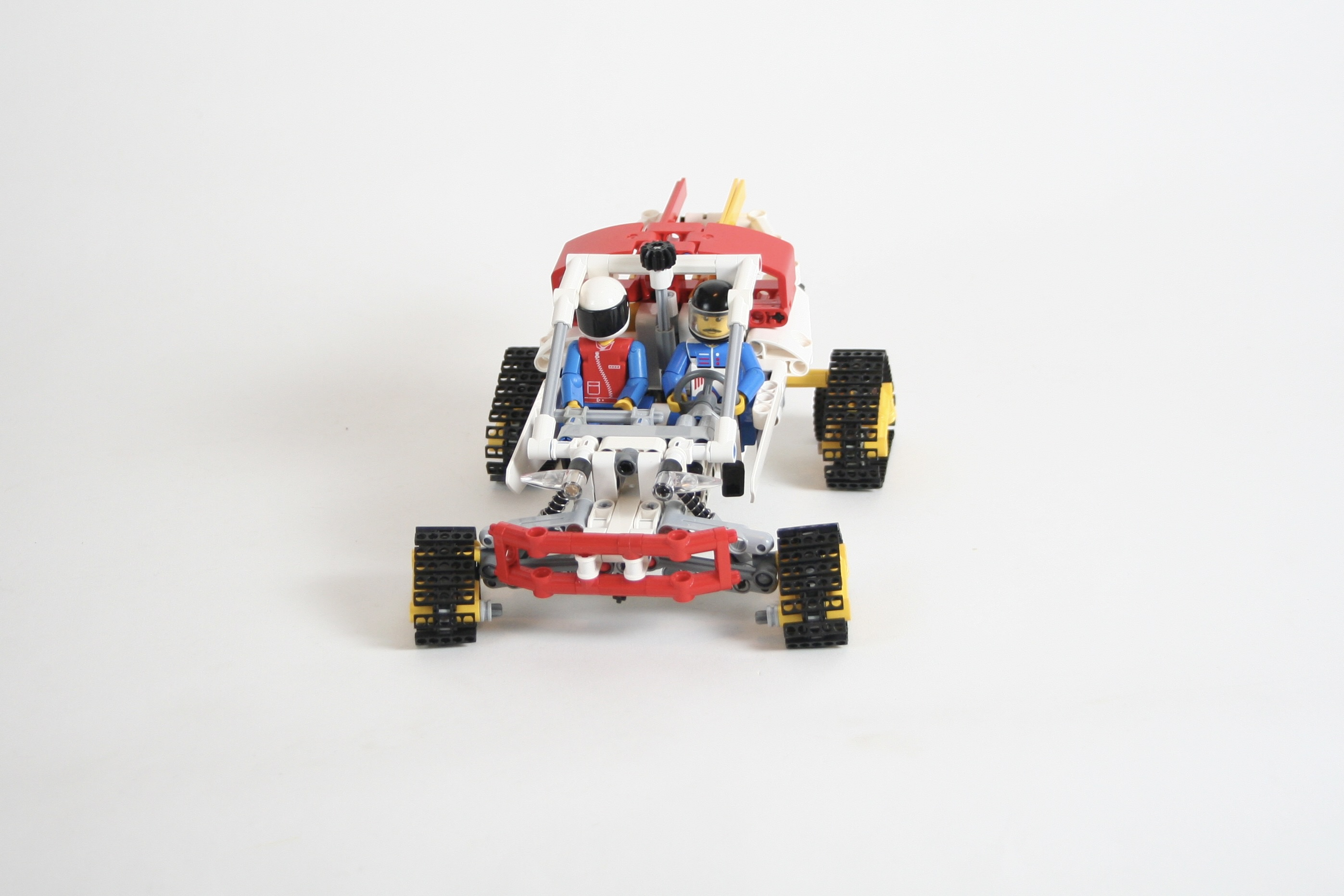

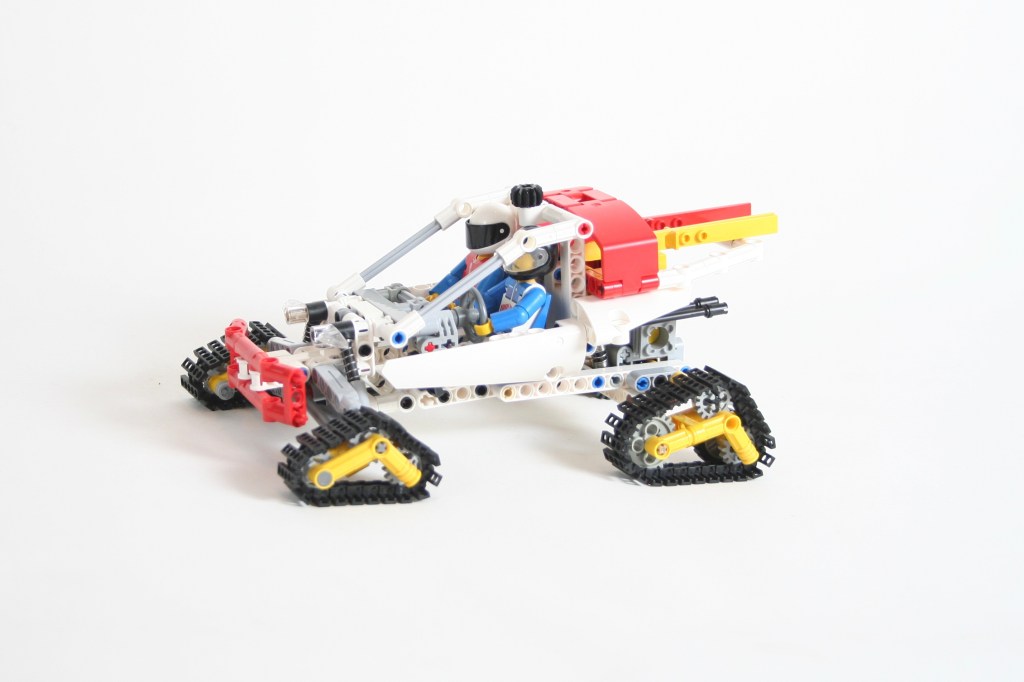

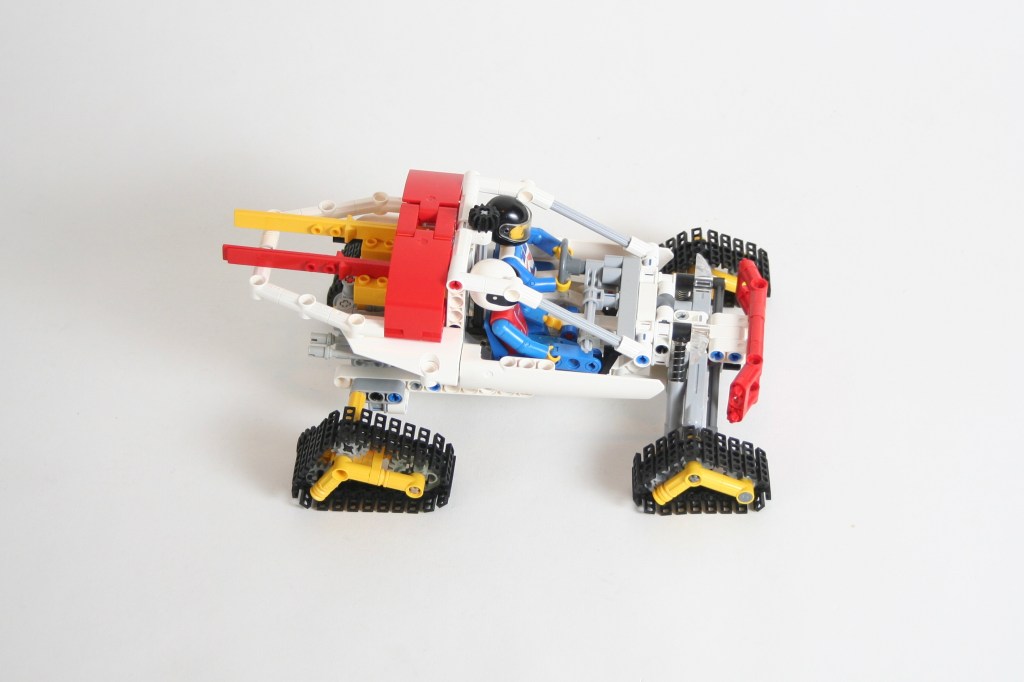

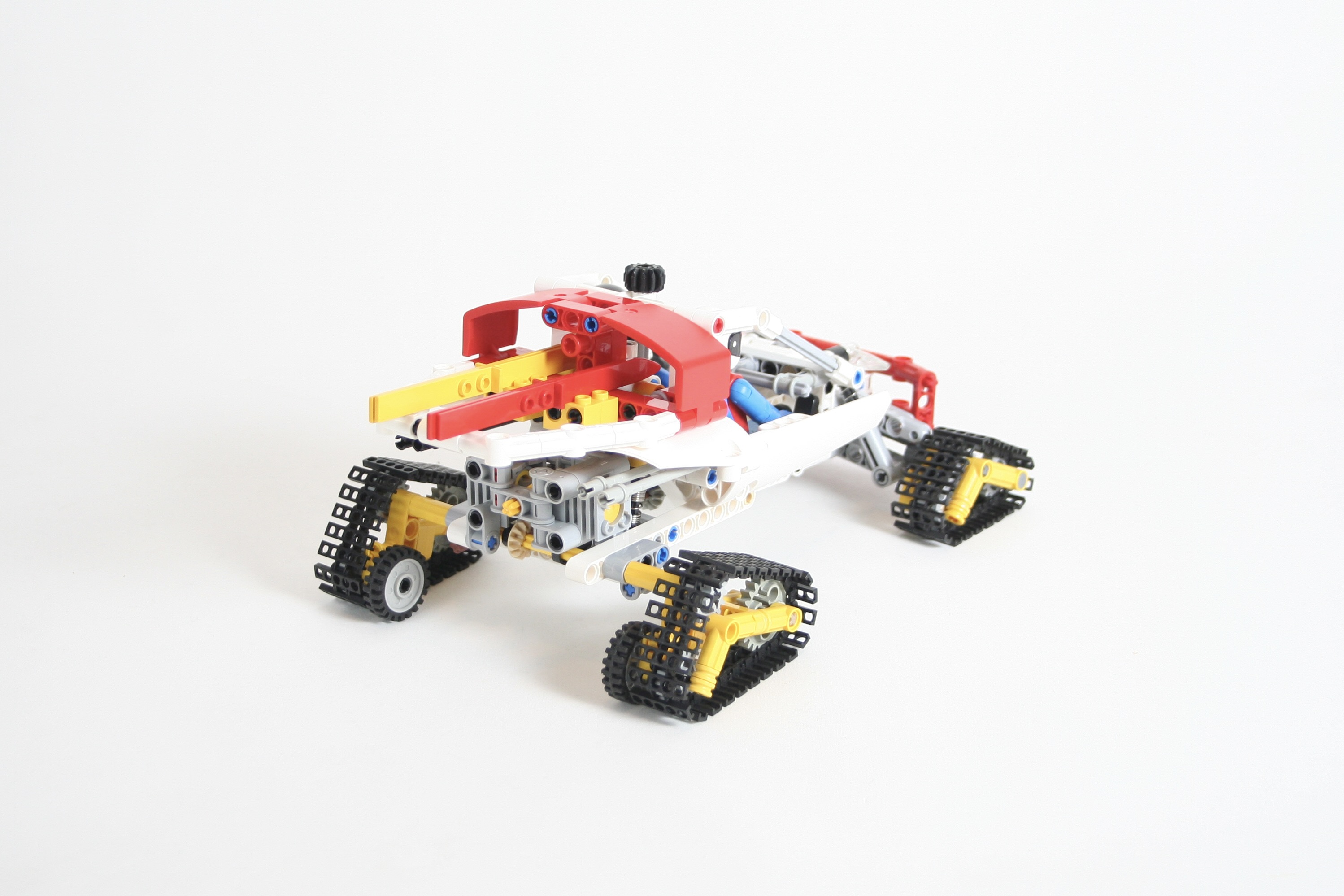

I designed the front suspension first to get an idea of the front track, and then each of the four track units. This gave me a rough size of the vehicle. Then a little engine and rear suspension unit was developed.

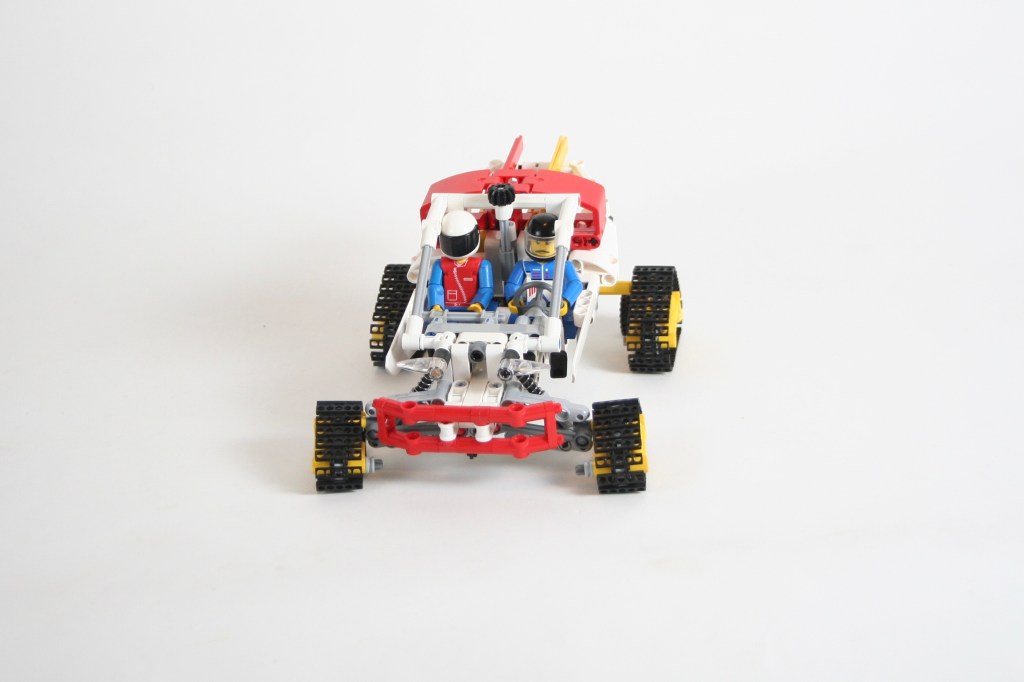

I then added the two seats and Technic figures. I have used these seats and figures before, and every time I do, I am reminded about how different the old studs and pins technic system is from the newer liftarm based system. There is no strong, simple, and compact way to add a Technic figure seat into a liftarm body. After some work, I was able to come up with something that would work. Then I was able to finalize a body around these features.

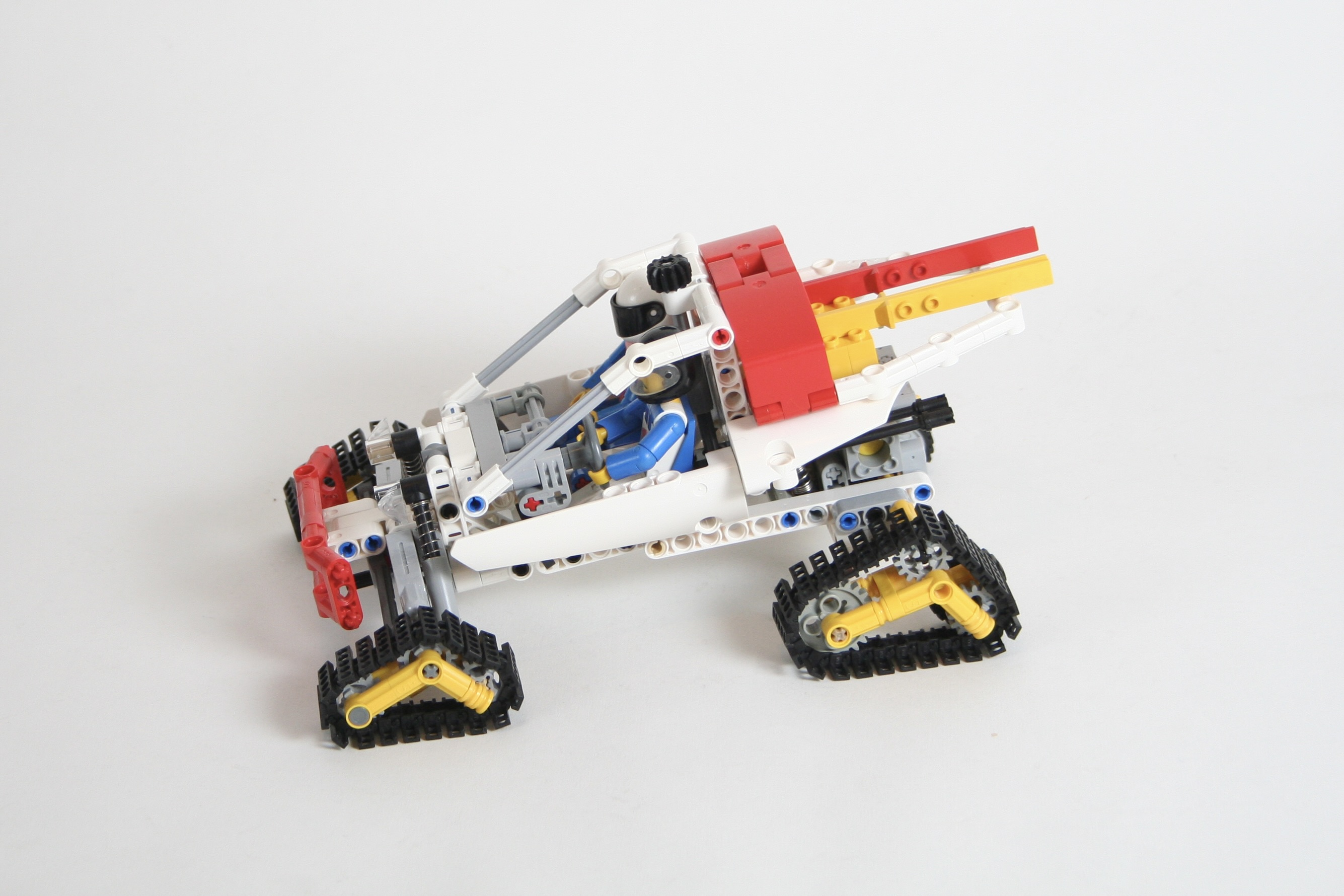

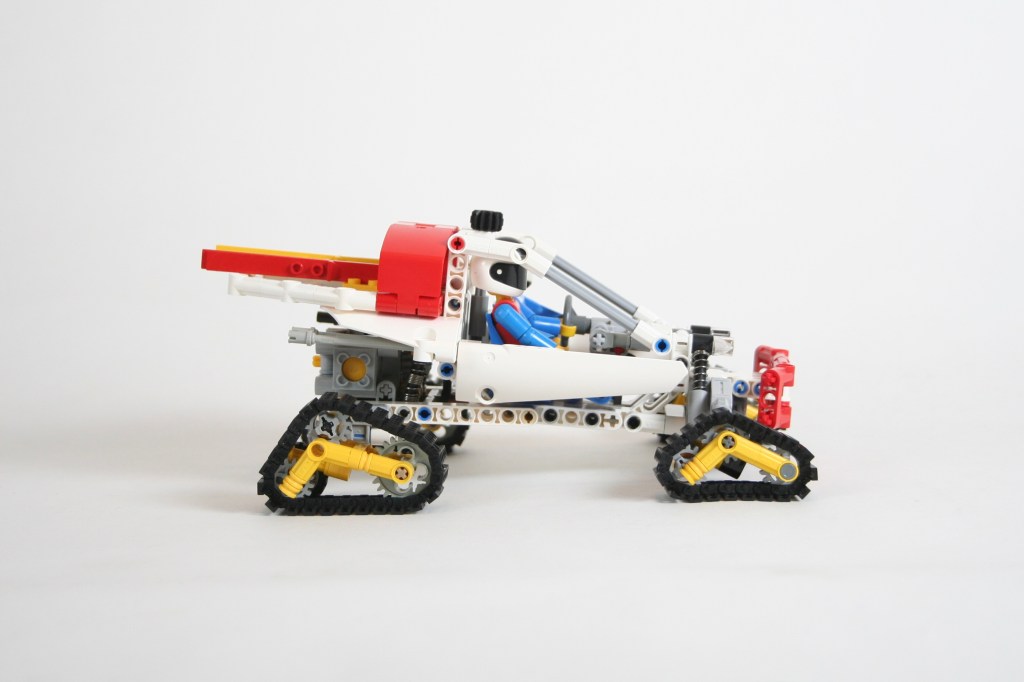

The design was simple, and nothing too fancy. The steering could have been a little better, and the tracks were not quite as smooth as I wanted, but it looked good enough, and allowed me to participate in another contest, which is always fun. Feel free to give the build a try for yourself.

Happy building.

Filed under Cars Tagged with , , ,
